Features
- 400 Ampere surge capability
- Electrically isolated base
- UL recognized

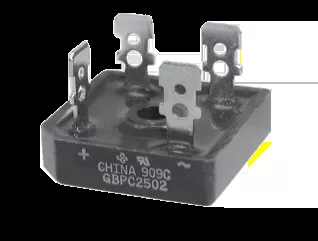

- Single-phase, full wave bridge
Specifications
| Average forward current | 25 amps |
| Case | Plastic case with an electrically isolated aluminum base |
| Polarity | Terminal designation embossed on case: +DC output, -DC output, AC not marked |
| Mounting position | Bolt down. Gain the highest heat transfer efficiency through the surface opposite the terminals. Use silicone heat sink compound on mounting surface for maximum heat transfer. |
| Terminals | Suitable for “fast-on” connections. Readily solderable and corrosion resistant. Soldering is recommended for applications greater than 15 amperes. |
| Mounting torque | 20 inch-pounds maximum |
| Case size | 1.030 x 1.030 inches |
| Temperature range | -85° to 347°F (-65° to + 175°C) |
| Function | Converts AC (alternating current) to DC (direct current) for locking circuit applications |
Applications
- Typically used with 8W599 transformer
