DESCRIPTION

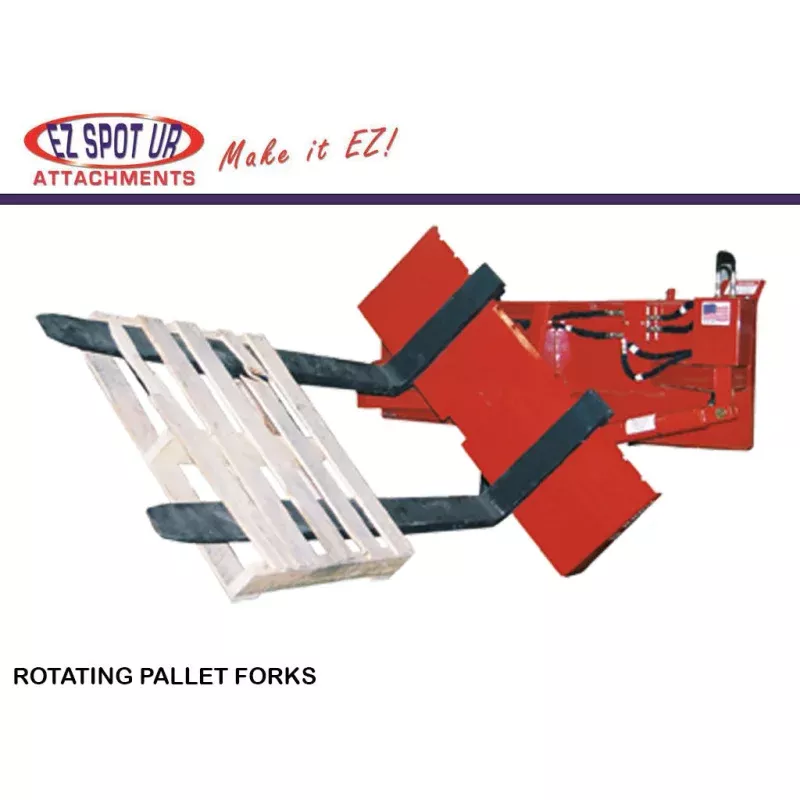

EZ SPOT ROTATING FORKS
The EZ SPOT UR rotating forks rotate 127 to the left. The Tool is designed to accept any Class 2 Forks.
Key Features
- Attaches to a skid steer or any other machine that is equipped with the Universal Quick ‘Tach mounting system.
- Attachment weighs 920 pounds with the EZ Spot URDouble Cylinder Rotating Baseand 48 inch forks.
- Rotates 127 to the operators left when attached to an EZ Spot URDouble Cylinder Rotating Base.
- Can also be attached to an EZ Spot URFixed Non-Rotating Base.
- 6,000 lbs. rated lift capacity
- 42″, 48″, or 60″ forks available
- Composed of Grade 50 material or higher and core welded to withstand years of wear and tear.
- Comes complete with hoses, flush faced couplers, spring hose mount, and wiring harness.
- Can be adapted to fit excavators, wheel loaders, telehandlers and backhoes*.
| Complete Attachment | |||
| FORK SIZE | 42″ TINE | 48″ TINE | 60″ TINE |
| WEIGHT LBS. | 805 | 825 | 885 |
| ROTATION DEGREE | 127 | 127 | 127 |
| ROTATION DIRECTION | LEFT | LEFT | LEFT |
BIG DAVE
Most EZ SPOT UR attachments are modular. If you own the mount you can just add the different tools to change the type of attachment. For a complete attachment you need a (1) mount (2) tool (3) tool accessory if applicable. (4) electrical harness
