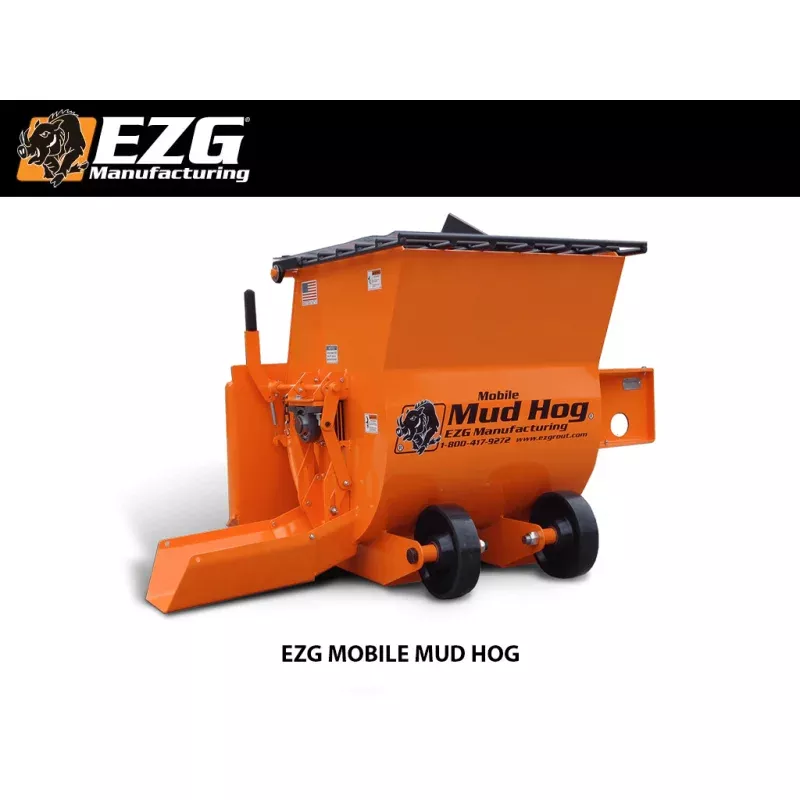

Mobile Mud HogPowerful On-the-Go Mixing for Concrete, Grout & Mortar

The Mobile Mud Hog delivers efficient material mixing and precise delivery even in tough terrain. Designed for skid steers, forklifts, and walk-behind loaders, this versatile mixer is perfect for concrete, grout, and mortar applications. Available in four models ranging from 4 to 20 cu. ft., each unit is engineered for high performance, durability, and safetymaking it the go-to choice for construction, masonry, and fencing professionals.

Featuring hydraulic-powered paddles and patented rubber blades, the Mobile Mud Hog ensures thorough, even mixing while reducing wear. Built-in forklift pockets and andskid steer plate offer unmatched versatility, while the efficient dump gate allows for fast, controlled unloadingup to cubic yard per minute.

Key Features:

• Mixes and delivers concrete, grout, and mortar

• Handles aggregate up to “

• Hydraulic or manual discharge options by model

• Optional water bar with re-settable meter

• Powered by auxiliary hydraulics

• Easy to load, mix, and pour in any environment

Models Available:

• MMH4 & MMH9Compact designs with manual gates for smaller loaders

• MMH12 & MMH20Hydraulic dump gate and skid steer plate for heavy-duty jobs

Engineered for mobility, performance, and reliability, the Mobile Mud Hog is the industrys top choice for efficient on-site mixing and delivery.

Optional Water Bar”

The Mobile Mud Hog is compatible with an optional water bar, equipped with a resettable meter.

MODEL	MMH4	MMH9	MMH12	MMH20
CAPACITY	4 cu. ft. (.11 m)/3-4 bags	9 cu. ft. (.25 m)/ 8-9 bags	12 cu. ft. (.34 m)/11-12 bags	20 cu. ft. (.57 m)/19-20 bags
EMPTY LBS.	350	600	1000	1400
GATE	MANUAL	MANUAL	HYDRAULIC	HYDRAULIC
FLOW RANGE (GPM)	4-16	4-26	10-40	10-40
PSI RANGE	2000-3000	2000-3000	2400-3000	2400-3000

SPECS

	MMH4	MMH9	MMH12	MMH20
Dimensions	48″ x 32″ x 38″ 1219.2 x 812.8 x 965.2 mm (l x w x h)	54″ x 36″ x 42″ 1371.6 x 914.4 x 1066.8 mm (l x w x h)	72″ x 36″ x 44″ 1828.8 x 914.4 x 1117.6 mm (l x w x h)	85″ x 45″ x 52″ 2159 x 1143 x 1320.8 mm (l x w x h)
Capacity (cu. ft / 80 lbs. bags)	4 cu. ft. (.11 m)/3-4 bags	9 cu. ft. (.25 m)/ 8-9 bags	12 cu. ft. (.34 m)/11-12 bags	20 cu. ft. (.57 m)/19-20 bags
Gross Weight	950 lbs. (431 kg)	1950 lbs. (885 kg)	2880 lbs. (1306 kg)	4400 lbs. (1996 kg)
Empty Weight	350 lbs. (159 kg)	600 lbs. (272 kg)	1000 lbs. (454 kg)	1400 lbs. (653 kg)
DrumThickness	3/16″	“	“	3/8″ drum end and 5/16″ drum wrap thickness
Aggregate Size (in.)	” (1.9 cm)	” (1.9 cm)	” (1.9 cm)	” (1.9 cm)
Power Supply	Auxiliary hydraulics	Auxiliary hydraulics	Auxiliary hydraulics	Auxiliary hydraulics
Drive System	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Dump Action	Manual gate	Manual gate	Hydraulic gate	Hydraulic gate
Min. Hydraulic Flow Rate	4 gpm @ 2000 PSI	4 gpm @ 2000 PSI	10 gpm @ 2400 PSI	10 gpm @ 2400 PSI
Max. Hydraulic Flow Rate	16 gpm @ 3000 PSI	26 gpm @ 3000 PSI	40 gpm @ 3000 PSI	40 gpm @ 3000 PSI
Material Discharge (yd./min.)
