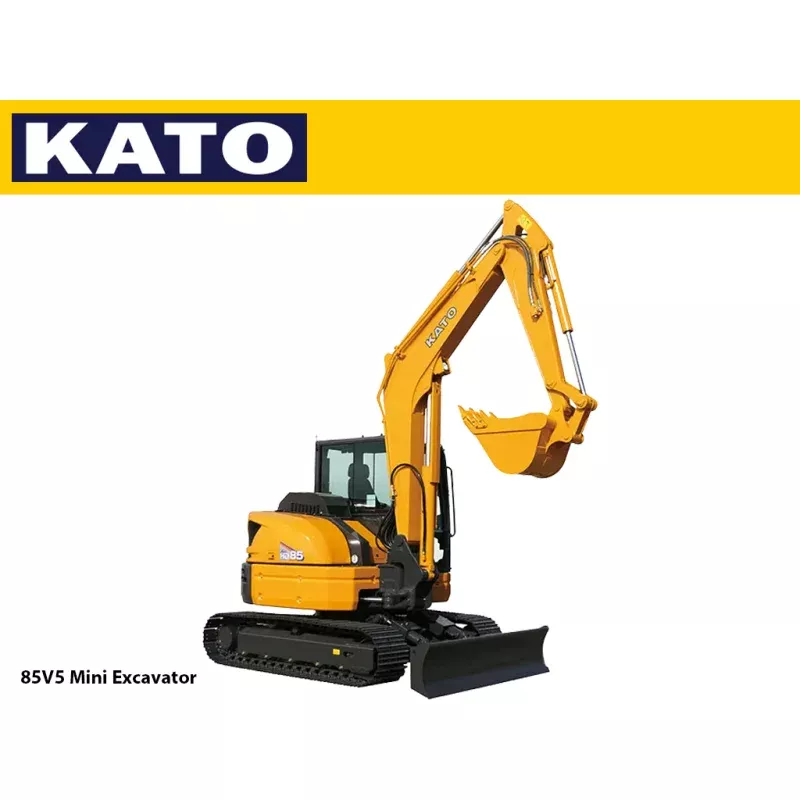

85V5 MINI EXCAVATOR
ZERO TAIL SWING POWER WITH EXCEPTIONAL COMFORT & STABILITY
The 85V5 Mini Excavator is the largest and most powerful machine in the IHI/Compact Excavator Sales mini excavator lineup, delivering outstanding performance for demanding jobsites. With an operating weight of up to 19,595 lbs and a zero-tail-swing design, the 85V5 provides maximum digging power while maintaining exceptional maneuverability in tight work areas.
Built for productivity and stability, the 85V5 comes standard with an additional 900 lb counterweight, improving balance and lifting confidence. Powered by a reliable 57 HP Yanmar engine, this excavator delivers smooth, responsive hydraulic performance and impressive breakout force. Its compact 7’3″ overall width makes it ideal for urban construction, utilities, and confined job sites.
OPERATOR COMFORT & CONTROL
-
Spacious wide cabthe largest in its class
-
Excellent visibility for safer operation
-
Ergonomic controls designed to reduce operator fatigue
-
Smooth hydraulic response for precise digging
POWER & PERFORMANCE
-
Engine: Yanmar 4TNV98C57 HP @ 2100 RPM
-
Max bucket digging force: 12,364 lbs
-
Bucket capacity: 8.8 ft
-
Swing speed: 9 RPM
-
Travel speed (low/high): 1.6 / 2.7 mph
-
Gradeability: 30
HYDRAULIC & BOOM SYSTEM
-
Hydraulic pressure: 3,550 psi
-
Total hydraulic flow: 81 GPM
-
1st auxiliary hydraulic flow: 20 GPM
-
Offset boom with hydraulic cylinders
-
Boom swing angle: 50 left / 80 right
DOZER BLADE
-
Blade size: 1’8″ x 7’3″
-
Lift above ground: 1’4″
-
Drop below ground: 1’5″
KEY SPECIFICATIONS
-
Operating weight: 19,595 lbs
-
Transport weight: 18,673 lbs
-
Ground pressure: 4.5 psi
-
Fuel tank capacity: 29 gal
The 85V5 Mini Excavator sets a new benchmark for power, stability, and operator comfort in a zero-tail-swing compact excavatorperfect for contractors who need maximum performance in restricted spaces.
SPECS
Specifications
| Bucket Capacity | 8.8 ft3 |
| Bucket Width | 30 |
| Operating Weight | 19,595 lbs. |
| Transportation Weight | 18673 lbs. |
| Swing Speed | 9 rpm |
| Travel Speed (low/high) | 1.6 / 2.7 mph |
| Gradeability | 30 |
| Ground Pressure | 4.5 psi |
| Max Bucket Digging Force | 12, 364 lbs. |
Engine
| Model | YANMAR 4TNV98C |
| Rated output | 57 hp @ 2100 rpm |
| Fuel Tank Capacity | 29 gal |
Boom Swing System
| Type | Offset Boom w/ Hydraulic Cyl. |
| Swing Angle (L / R) | 50/80 |
Hydraulic System
| Pressure | 3550 psi |
| Hydraulic Flow | 81 gpm |
| 1st Line Max Auxiliary Flow | 20 gpm |
Dozer Blade
| Size | 1 8 x 7 3 |
| Lift Above ground / Drop Below Ground | 1 4 / 1 5 |
