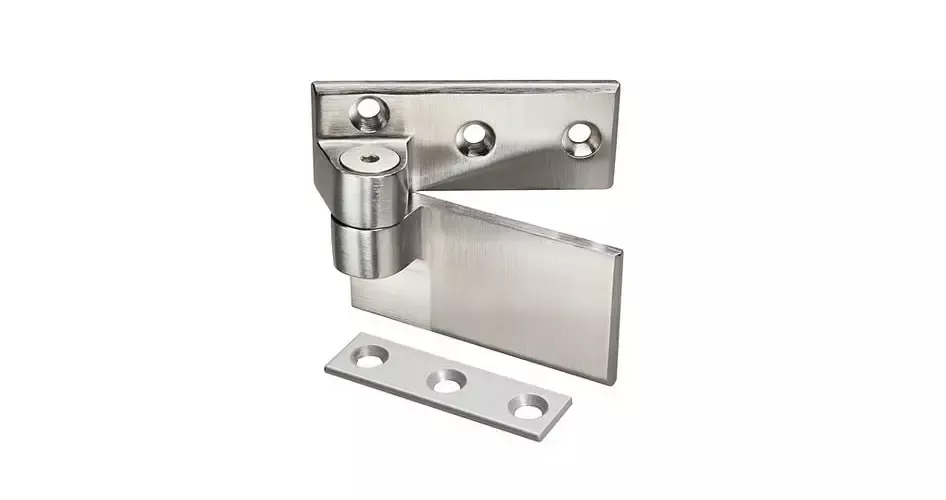

Rixson F480 Fire Rated 3/4″ Offset-Hung Top Pivot Set

The F480 is an optional, Fire-rated top pivot where door and jamb portion cannot be mortised.

Features

• Full surface
• Handed
• Fire-rated
• Flush door and frame application only
• Optional top pivot where door and jamb portion cannot be mortised
• Designed for channel iron door frames and any door where thru-bolting is advantageous
• Available for fire door assemblies (ferrous material) — specify F480
• 3/4″ (19mm) offset (measured from centerline of pivot to face of door)
• 1-3/4″ door only
• Furnished with wood and machine screws
• Available with longer than standard pivot pins – increments are 1/4″ (6mm), 1/2″ (13mm), 3/4″ (19mm) only

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

• Catalog
• Template
