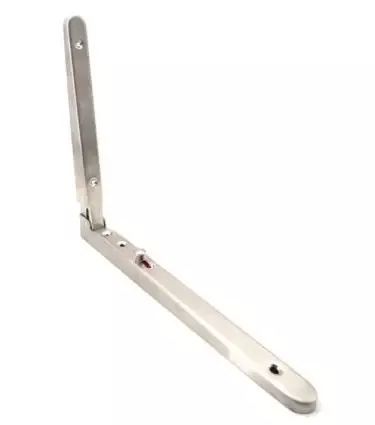

Folding Bracket, Folding bracket with manual lock lever. Slide the lock lever to lock / unlock in the open position. Bracket with hinge function in one unit. Supplied with screws.
Features
- Folding bracket with manual lock lever
- Slide the lock lever to lock/unlock in open position
- Bracket with hinge function in one unit
- Supplied with white painted screws.
Specifications
| Material |
– |
304 Stainless Steel, 303 Stainless Steel |
| Finish |
– |
Satin |
| Weight of Item (g) |
– |
510 |
| Length or Depth of Item when closed (in) |
– |
2.25 |
| Length or Depth of Item when open (in) |
– |
9.5 |
| Height of Item (in) |
– |
11.8125 |
| Width of Item (in) |
– |
0.9375 |
| Load Capacity (lbs) |
– |
9.27272727 |
| Holes |
– |
6 |
| All-Stainless Steel |
– |
Y |
| Are Fasteners Included |
– |
Y |
| Are Fasteners Required |
– |
Y |
| Fasteners Size |
– |
3.5 x 20, 3.8 x 38 mm |
| Fasteners Type |
– |
Self tapping screw |
| Is CA Prop 65 Compliant |
– |
N |
| Is NSF Compliant |
– |
N |
| Is RoHS Compliant |
– |
RoHS 2 |
| Is Accessory |
– |
N |
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
About Sugatsune
Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you’ll know you made the right choice. Every detail of Sugatsune’s cabinet hardware is fully realized, whether it’s their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can’t guarantee divine intervention, but their quality and customer service come awfully close.
| Item No. |
H |
L |
| BTO-300S |
300 (11-13/16″) |
241 (9-7/16″) |
| BTO-300W |
300 (11-13/16″) |
241 (9-7/16″) |
| Item No. |
Load Capacity (kg) |
Load Capacity (lbs) |
Weight (g) |
Screw Material |
| BTO-300S |
11.4 |
25 |
510 |
304 Stainless Steel |
| BTO-300W |
13.4 |
29.5 |
510 |
Steel / White |
